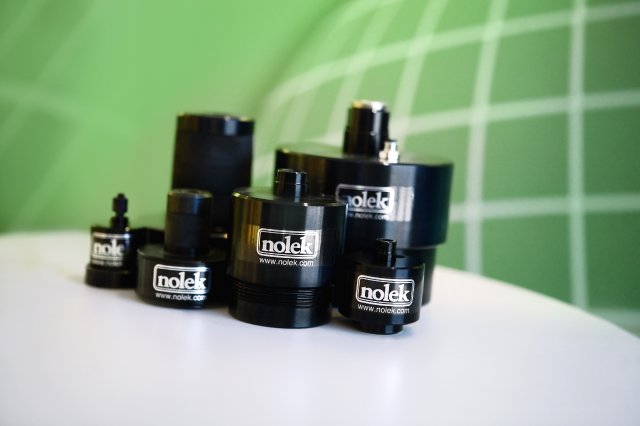

ConnectIT CI/CE are pneumatically controlled connectors for quick and easy test piece connections. Suitable for leak testing, proof testing and leak detection. ConnectIT CI/CE seals of internally/externally inside/outside the object. We manufacture the connectors taking into consideration the testing pressure, working media, working conditions and appearance.
We offer connectors with both metric and inch based dimensions. Our standard connectors are available in dimensions up to 82-85mm in diameter. Connectors with other dimensions, special designs or special materials are also available upon request.
HOW THE CONNECTORS WORK
The connectors are connected to and seal of a test object when proof testing, leak testing,
filling and/or emptying of media
HOW THE CONNECTORS CAN BE USED
Connectors are available for practically all different kinds of objects. Areas of use
- For Liquids
- For Gases
- For Testing: Pressure Testing, Leak Testing or Leak Detection.
- For Filling or Emptying media.
TECHNICAL DATA – AVAILABLE STANDARD SIZES OF CONNECTIT CI
| Article No. | Type | Pipe Ø mm |
|
Thread pilot | |
| CI1012 | CI 10-12 | 10-12 | 1/8″ | 1/8″ | |
| CI1214 | CI 12-14 | 12-14 | 1/8″ | 1/8″ | |
| CI1416 | CI 14-16 | 14-16 | 1/8″ | 1/8″ | |
| CI1618 | CI 16-18 | 16-18 | 1/8″ | 1/8″ | |
| CI1820 | CI 18-20 | 18-20 | 1/8″ | 1/8″ | |
| CI2022 | CI 20-22 | 20-22 | 1/8″ | 1/8″ | |
| CI2224 | CI-22-24 | 22-24 | 1/8″ | 1/8″ | |
| CI2426 | CI 24-26 | 24-26 | 1/8″ | 1/8″ | |
| CI2628 | CI 26-28 | 26-28 | 1/8″ | 1/8″ | |
| CI2830 | CI 28-30 | 28-30 | 1/8″ | 1/8″ | |
| CI3032 | CI 30-32 | 30-32 | 1/8″ | 1/8″ | |
| CI3234 | CI 32-34 | 32-34 | 1/8″ | 1/8″ | |
| CI3437 | CI 34-37 | 34-37 | 3/8″ | 1/8″ | |
| CI3740 | CI 37-40 | 37-40 | 3/8″ | 1/8″ | |
| CI4043 | CI 40-43 | 40-43 | 3/8″ | 1/8″ | |
| CI4347 | CI 43-47 | 43-47 | 1/2″ | 1/8″ | |
| CI4751 | CI 47-51 | 47-51 | 1/2″ | 1/8″ | |
| CI5155 | CI 51-55 | 51-55 | 1/2″ | 1/8″ | |
| CI5558 | CI 55-58 | 55-58 | 1/2″ | 1/8″ | |
| CI5862 | CI 58-62 | 58-62 | 1/2″ | 1/8″ | |
| CI6265 | CI 62-65 | 62-65 | 1/2″ | 1/8″ | |
| CI6569 | CI 65-69 | 65-69 | 1/2″ | 1/8″ | |
| CI6972 | CI 69-72 | 69-72 | 1/2″ | 1/8″ | |
| CI7275 | CI 72-75 | 72-75 | 1/2″ | 1/8″ | |
| CI7579 | CI 75-79 | 75-79 | 1/2″ | 1/8″ | |
| CI7579 | CI 79-82 | 79-82 | 1/2″ | 1/8″ |
