If your production line is hitting a wall, it’s highly likely your leak testing cell is the bottleneck. In a high-volume manufacturing environment, every second a component sits waiting for a pass-or-fail signal is a second it isn’t moving toward shipping. Yet, trying to trim down those cycle times can feel like a high-stakes gamble. Speed up the process too much, and you risk a false negative, allowing a micro-leak to slide through and creating the absolute nightmare of a product recall down the line. It leaves a lot of engineers asking the same question: how do you actually make your testing cycle faster without giving up accuracy?
The Real Culprit Behind Your Waiting Times
To fix the bottleneck, we first need to look at what is causing the delay. If you are running standard mass spectrometer leak tests, the culprit is almost always how your system manages background gas. Our ambient atmosphere is filled with gases that drift into your test chamber, which becomes a massive headache if you are trying to use an abundant, cost-effective tracer gas like argon, which naturally makes up about 1% (roughly 9,300 parts per million) of the air around us.
In a traditional setup, the system relies on what is called “static zero-point calibration”. Think of it exactly like hitting the tare button on a kitchen scale. The machine evacuates the chamber, waits for the background gas levels to flatten out completely, takes a quick measurement snapshot, and subtracts that constant baseline number from your final test results. The fatal flaw? Waiting for that vacuum chamber to drag itself down to ultimate pressure equilibrium takes a long time. On a fast-moving production line, you simply don’t have that time to spare.
Smart Mathematics Over Brute Force
The good news is that metrology has evolved far beyond the basic tare button. Modern testing architectures utilise dynamic background compensation algorithms.
Instead of sitting idly by while the background gas stabilises, these smart algorithms actively model the mathematical trajectory of the decaying background curve while the vacuum evacuation phase is actively happening. By looking at how the background has dropped over the preceding two seconds, the software continuously extrapolates where the curve is heading.
This allows the system to distinguish a tiny, newly introduced tracer gas leak from the naturally falling background envelope almost instantly. Because you don’t have to wait for the system to reach ultimate pressure equilibrium before starting your active measurement cycle, you slice absolute chunks of time out of the process.
Real-World Proof on the Factory Floor

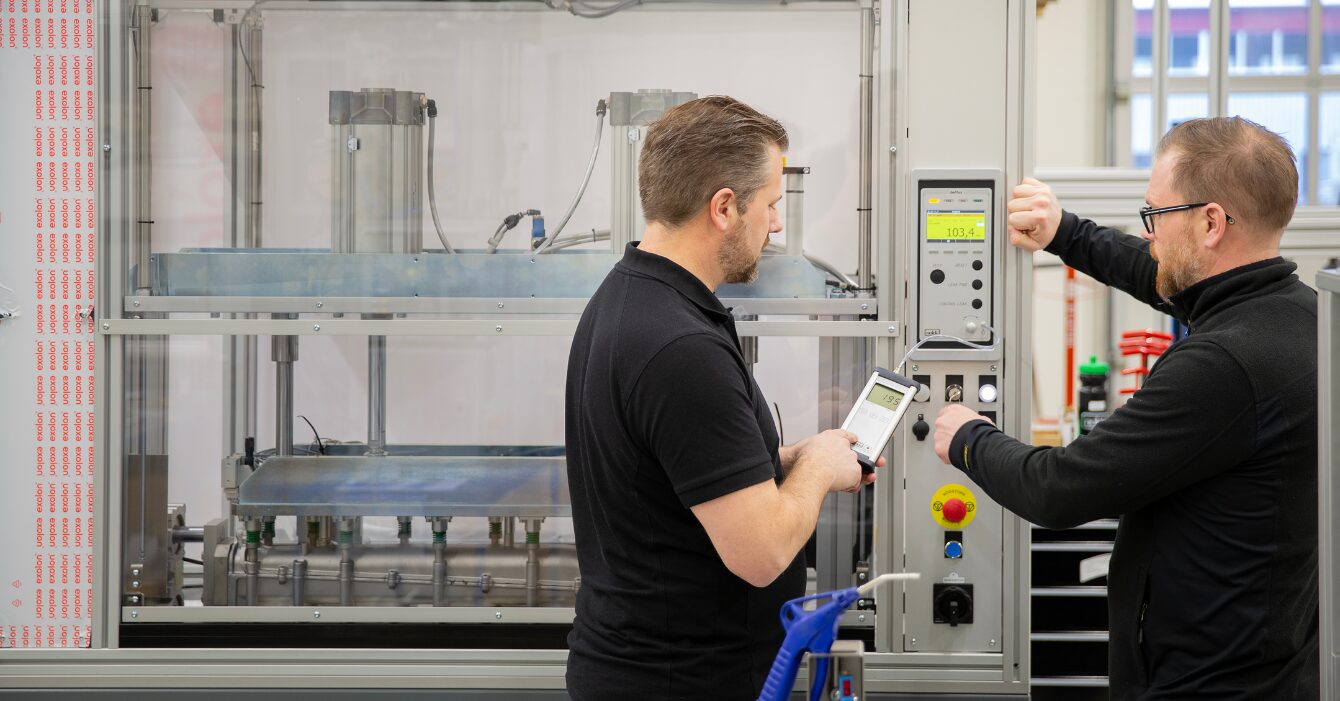

What does this shift look like in practice? It translates directly into a massive boost to your production throughput. Take a look at highly demanding automated systems testing fuel cell bipolar plates. By utilising dynamic background compensation, manufacturers have shrunk total cycle times, including loading the part, three separate evacuations, and three sequential test phases, down to just 48 seconds per station. That gives you an effective throughput of 300 plates per hour per module, with zero compromise on precision. Furthermore, high-performance instruments like the MS-40GT can hit a time-to-test of just 1.5 seconds on a blank test port.
The One Step You Should Never Skip
With that kind of speed within reach, it can be incredibly tempting to try and shave off a few more seconds by rushing the pre-evacuation phase before you inject your tracer gas. Don’t do it. Pre-evacuating your component’s internal volume is absolutely critical to your accuracy.
If you leave residual air inside your component, it can easily trap pocketed air inside complex internal geometries or narrow paths, completely blocking your tracer gas from ever reaching a prospective leak site. Even worse, leaving residual air inside severely dilutes the tracer gas. If you fill a part with tracer gas at 1 atmosphere of pressure without pre-evacuating it, you are instantly slashing your tracer gas concentration inside the part to 50%. That single shortcut directly halves the sensitivity of your leak detector.
At Nolek, we believe that every manufacturing challenge is an opportunity to innovate and build something more efficient. You no longer have to make a painful compromise between keeping your production line moving fast and ensuring every part is perfectly sealed. By pairing smart dynamic background compensation hardware with robust pre-evacuation protocols, you can safely slash your cycle times. It is all about letting advanced algorithms do the heavy lifting so you can get your products out the door with total confidence.
