OUR SNIFFER TOOL – SNIFFIT X1 LEAK DETECTOR

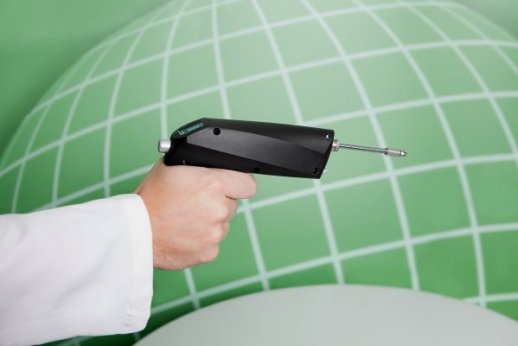

SniffIT X1® is a handheld battery powered leak detector based on the novel patented SniffIT technology®. SniffIT X1® is designed for sniffing both Helium and Hydrogen.

SniffIT X1® is ergonomic and the smallest high quality instrument on the market, it weighs approximately 300g (0.66 lbs). The smallest detectable levels of Helium and Hydrogen with SniffIT technology® is 1×10-5 mbar.l/s, making the technology one of the most sensitive in the marketplace today. The flexibility to detect both Helium and Hydrogen makes SniffIT X1® independent of the tracer gas used for leak detection, and is the only one of its kind.

With SniffIT technology® the sensor never gets saturated and consequently the instrument has no variable costs unlike most alternatives. At the same time it has instantaneous reaction time and no start up time, just push the ON button and start sniffing. The instrument has two sensitivity ranges; high and low sensitivity.

SNIFFIT X1® IS BUILT AND DEVELOPED TO MEET FOUR CRITERIA:

  • SIMPLE:  not operator dependent, simply press ON and if Helium or Hydrogen leaks from a product it is shown on the display. The display has both a graphical GUI and numeric7quantitative GUI.
  • MOBILE:  It is not bigger than a human hand, weighs 300g (0.66 lbs) and has 10 hours of battery capacity.
  • ACCURATE:  SniffIT gives very accurate results based on a reliable unique technology.
  • AFFORDABLE:  SniffIT X1® is the least expensive high quality sniffer on the market, less than half the price compared to alternatives and there are no hidden variable costs. etc.

WHAT OUR SNIFFER DOES

SniffIT X1 is used for leak detection. The typical procedure is that one first inserts either helium or hydrogen into a product. Then one uses SniffIT X1all over the product, if helium or hydrogen leaks through the product the SniffIT X1 will detect the leak. Hence, this is a leak locating instrument.

WHERE CAN IT BE USED

Below are just some examples where SniffIT X1 can be used:

  • Complement your leak test with leak detection by locating leaks on rejected parts by pressure decay test.
  • Test your engines, pumps, valves, gear boxes etc. After you have leak tested your product with pressure decay fill the product with helium or hydrogen and find the exact leak location with SniffIT.
  • Test your product in a simple and manual way.
  • For heat pumps after leak testing your complete pump, find the exact leak location with SniffIT.
  • Tanks often have too large volume for pressure decay and complete helium system are expensive. Fill the product with Helium or Hydrogen and find your potential leaks, quick and efficient without any messy and inaccurate leak detection sprays.
  • Testing of brake pipes and ABS systems after installation.
  • Surface testing for water and oil tightness of engine blocks and other automotive parts.
  • Location of internal leaks in valves etc.
  • Test Automotive oil coolers.
  • Test Pharmaceutical packages.
  • Test Valves and valve manifolds.
  • Test welded seams on tanks.
  • Clamp testing of joints with very high sensitivity.
  • Ideal for Leak testing in small volume production
  • Use for testing new products and statistical samples as well as inline production testing.
  • Analysis of potential leak points by locating leaks on rejected products.
  • · Regardless if the product is small or big, hot or cold, if you use Helium or Hydrogen, SniffIT X1 can find your leaks.

TECHNICAL DATA

Battery capacity 8 hours
Charging time 4 hours
Dimension H*B*D 149x238x55 mm
Weight 320 gram
Detectable Gases Helium and hydrogen, calibrated for the chosen gas but sensitive for both.
Detect leaks greater than 1*10-5 mbarl/s
Accuracy ± 20% of reading or min ± 3* 10-5 mbarl/s
Available units mbarL/s
Respons time
Recovery time
Operating temperature 10-40°C
Storage temperature -10°C to 60°C
Humidity 85% RH NC
Input voltage 5 V(dc)
Input current 500 mA max
Signal presentation Numeric and bar graph, OLED Display
Alarm level Yes
Audio alarm Yes
Vibration alarm Yes
Logging possibilities Yes
Auto Zero Yes
Probe lenghts 50mm and 350mm
Wrist strap Yes
Two extra filter Yes
USB Charger Yes
Built in SD card Yes
Language English and Swedish
Package Weather protected case included
Calibration certificate Yes
Certificates CE, FCC
Warranty 1-year
